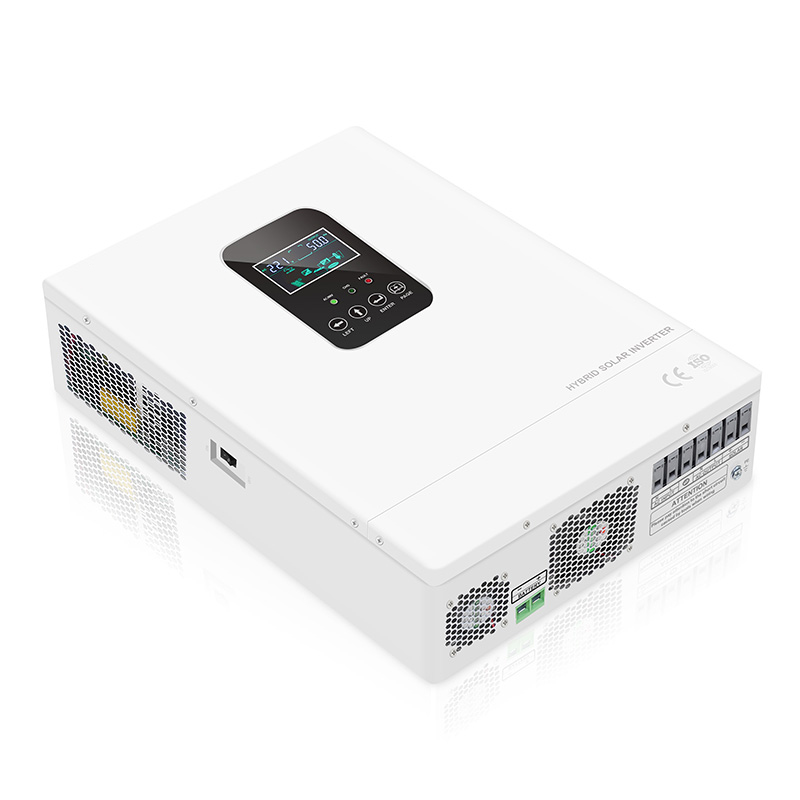

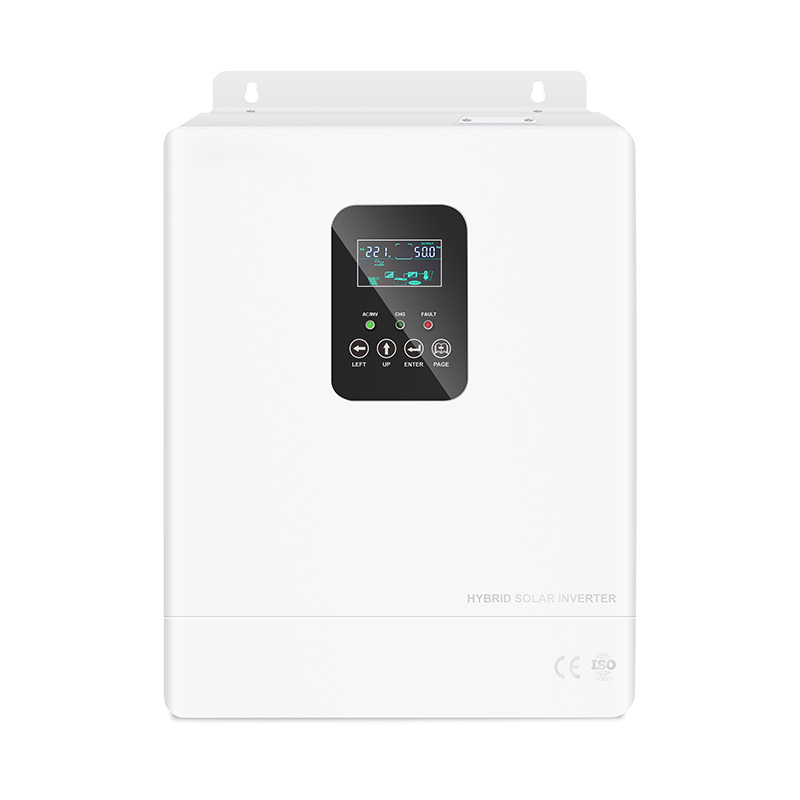

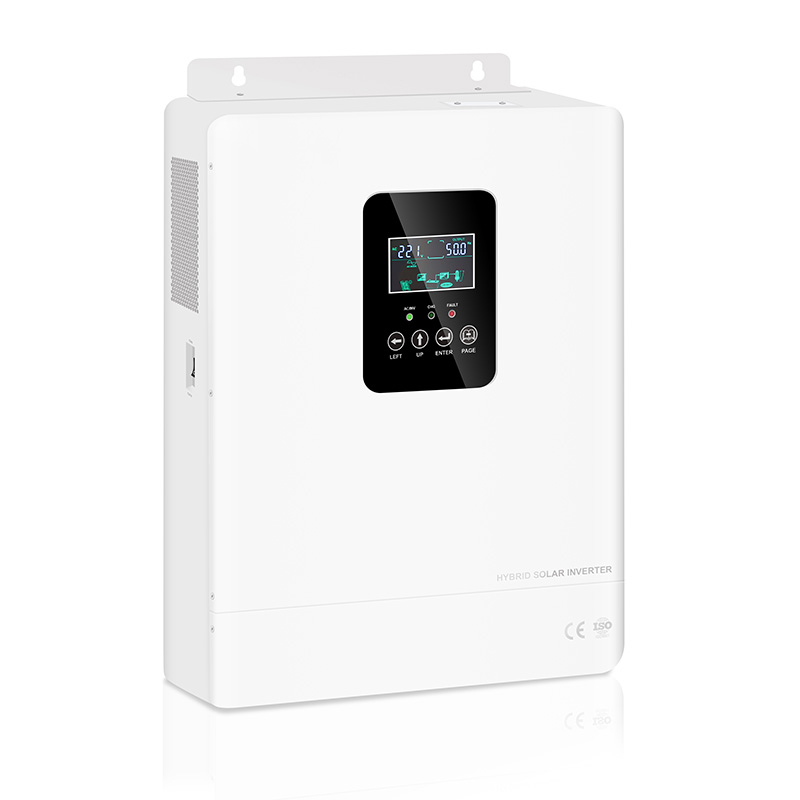

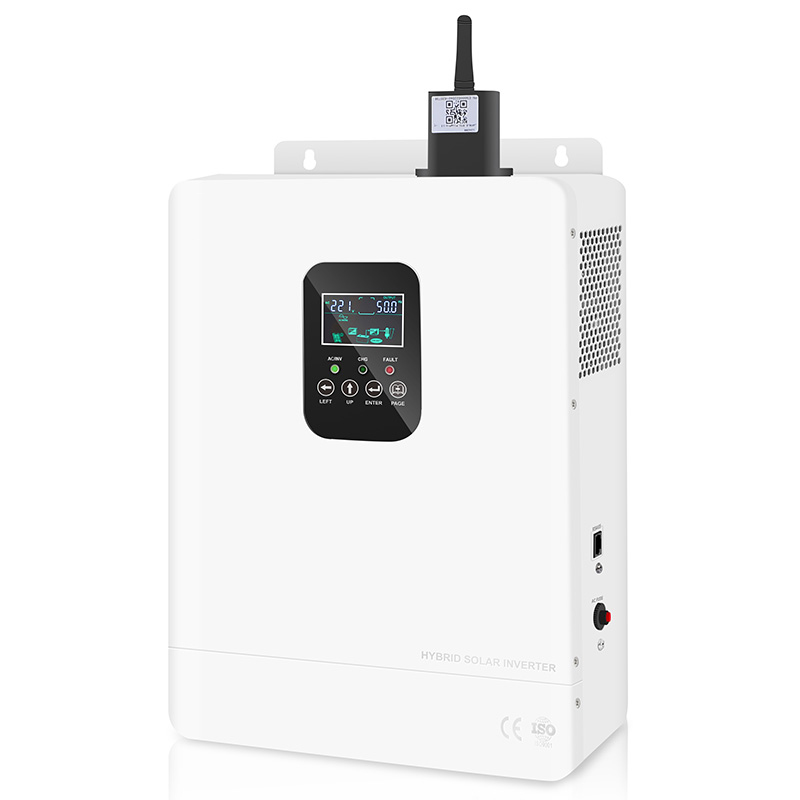

1000W-8000W Built-in MPPT Solar Charger Off Grid Hybrid Solar PV Inverter

Brand: ROYCE OEM Service: Yes Model: HP PRO-T Input Voltage: 12/24/48VDC Output Voltage: 220/230/240VAC±2% Solar Charging: MPPT Max PV Open Circuit Voltage: 120/500VDC

Email

The primary feature of the HP Pro-T series hybrid solar inverter sets it apart from other models on the market: it can function normally even when disconnected from the battery thanks to an integrated MPPT solar charger. A technological advancement, the majority of off-grid inverters require a battery connection.

Furthermore, the main charging current of the hybrid solar PV inverter may reach 60A to 80A, which is significantly higher than the low frequency inverter's maximum current of 30A. When the PV input voltage hits 500VDC, a larger variety of solar panels can be used.

Features:

High frequency pure sine wave, off grid solar pv inverter
Inverter output power factor 1
Inverter built-in MPPT solar charger can work without batteries
Compatible with lithium batteries
Compatible to generator
RS485/WIFI remote monitoring (optional)
Accept OEM solar pv inverter

Technical Parameter

Special voltage and power can be customized

Solar PV Inverter Specification
Model: HP pro-T			10212	15224	20224	32224L	32224	50248L	50248	72248
Rated Power			1000W	1500W	2000W	3200W	3200W	5000W	5000W	7200W
Peak Power（20ms)			3000VA	4.5KVA	6KVA	9.6KVA	9.6KVA	15KVA	15KVA	21.6KVA
Battery Voltage			12VDC	24VDC				48VDC
Product Size（LWHmm）			355x272x91.5			400x315x101.5		440x342x101.5		525x355x115
Package Size（LWHmm）			443x350x187			488x393x198		528x420x198		615x435x210
N.W（Kg）			6.5			8.5		10		14
G.W（Kg）			7.5			9.5		11		15.5
Installation Method			Wall-Mounted
ＰＶ	Charging Mode		MPPT
	MPPT tracking voltage range		15V-80VDC	30V-100VDC			120V-450VDC	60V-140VDC	120V-450VDC
	Rated (recommended) operating voltage of PV array		15V-30VDC	30V-60VDC			360VDC	60V-90VDC	360VDC
	Max PV Input Voltage Voc (At the lowest temperature)		120VDC				500VDC	180VDC	500VDC
	PV Array Maximum Power		840W	1680W			4000W	3360W	6000W	4000Wx2
	MPPT tracking channels (input channels)		1							2
Input	DC Input Voltage Range		10.5-15VDC	21VDC-30VDC				42VDC-60VDC
	Rated AC input voltage		220VAC / 230VAC / 240VAC
	AC Input Voltage Range		170VAC~280VAC （UPS mode）/ 120VAC~280VAC（INV mode）
	AC Input Frequency Range		45Hz~55Hz（50Hz)，55Hz~65Hz（60Hz)
Output	Output efficiency(Battery/PV Mode)		94%（Peak value）
	Output Voltage(Battery/PV Mode)		220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery/PV Mode)		50Hz±0.5 or 60Hz±0.5
	Output Wave(Battery/PV Mode)		Pure Sine Wave
	Efficiency(AC Mode)		>99%
	Output Voltage(AC Mode)		Follow input
	Output Frequency(AC Mode)		Follow input
	Output waveform distortion Battery/PV Mode)		≤3%(Linear load)
	No load loss(Battery Mode)		≤1% rated power
	No load loss(AC Mode)		≤0.5% rated power(charger does not work in AC mode)
Battery	Battery Type	VRLA Battery	Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage)
		Customize battery	Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel)
	Maximum charging current (mains + PV)		120A	100A	110A	120A	100A	120A	100A	150A
	Max PV Charging Current		60A	60A	60A	60A	100A	60A	100A	150A
	Max AC Charging Current		60A	40A	50A	60A	60A	60A	60A	80A
	Charging method		Three-stage (constant current, constant voltage, floating charge)
Protection	Battery low voltage alarm		Battery undervoltage protection value+0.5V(Single battery voltage)
	Battery low voltage protection		Factory default: 10.5V(Single battery voltage)
	Battery over voltage alarm		Constant charge voltage+0.8V(Single battery voltage)
	Battery over voltage protection		Factory default: 17V(Single battery voltage)
	Battery over voltage recovery voltage		Battery overvoltage protection value-1V(Single battery voltage)
	Overload power protection		Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Inverter output short circuit protection		Automatic protection (battery mode), circuit breaker or insurance (AC mode)
	Temperature protection		>90°C(Shut down output)
Working Mode			Mains priority/PV priority/Battery priority(Can be set)
Transfer Time			≤10ms
Display			LCD+LED
Thermal method			Cooling fan in intelligent control
Communication(Optional)			RS485/APP(WIFI monitoring or GPRS monitoring)
Environment	Operating temperature		-10℃~40℃
	Storage temperature		-15℃~60℃
	Noise		≤55dB
	Elevation		2000m(More than derating)
	Humidity		0%~95% (No condensation)
Note:　1. Model of 10212/15224/20224/32224L/50248L only support mains priority mode and battery priority mode, PV priority work mode is not supported. 2. All specifications are subject to charge without prior notice.

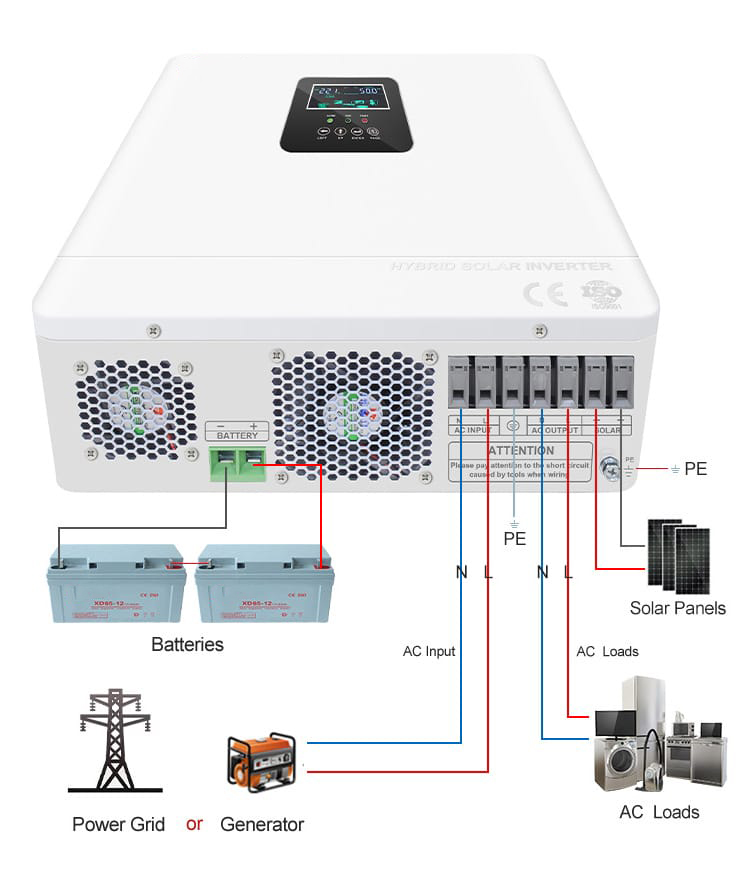

How is a hybrid PV solar inverter used?

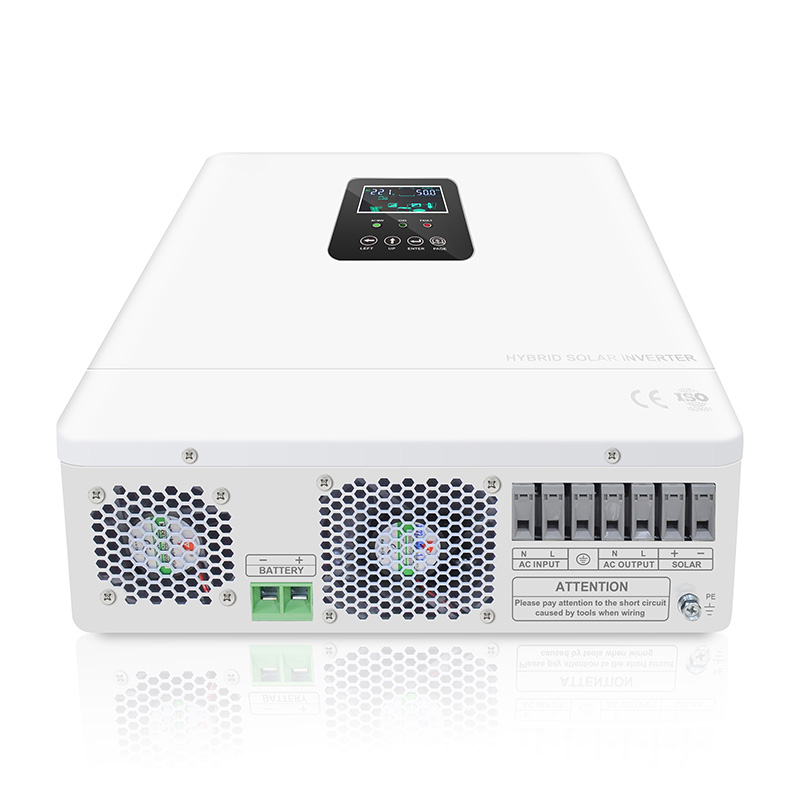

Each wiring port has been well marked, and there is a comprehensive user manual. If you're clever, using this inverter is really easy.

Packaging for Shipment Safety Inverters

A robust and secure inverter package is necessary for a high-quality inverter. To ensure the hybrid solar PV inverter is delivered to the customer safely, we will take cartons or wooden boxes and reinforce them layer by layer.

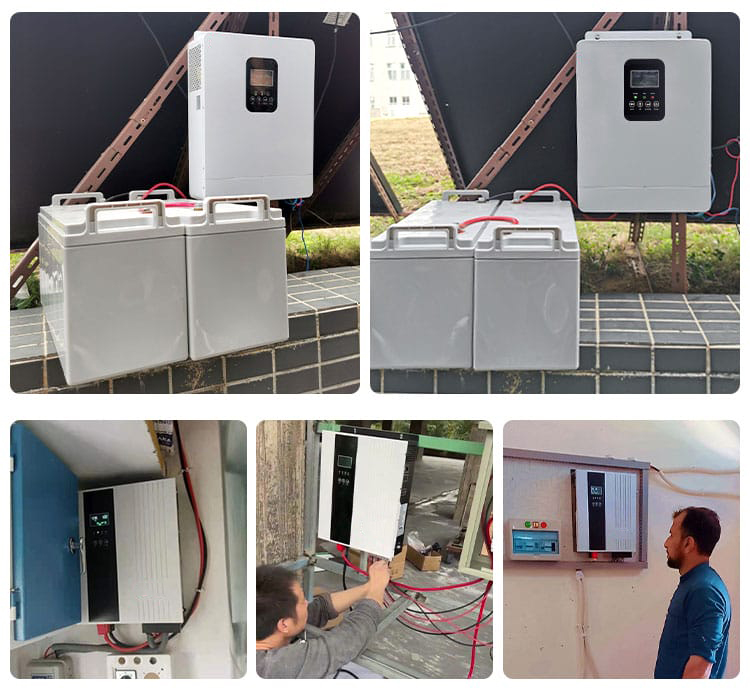

Project Case for Hybrid Solar PV Inverter

You shouldn't be concerned about the hybrid solar PV inverters made by ROYCE. My inverters have been utilized for two to three years by numerous clients to address issues with high local electricity bills and power disruptions.

hybrid PV solar inverter
