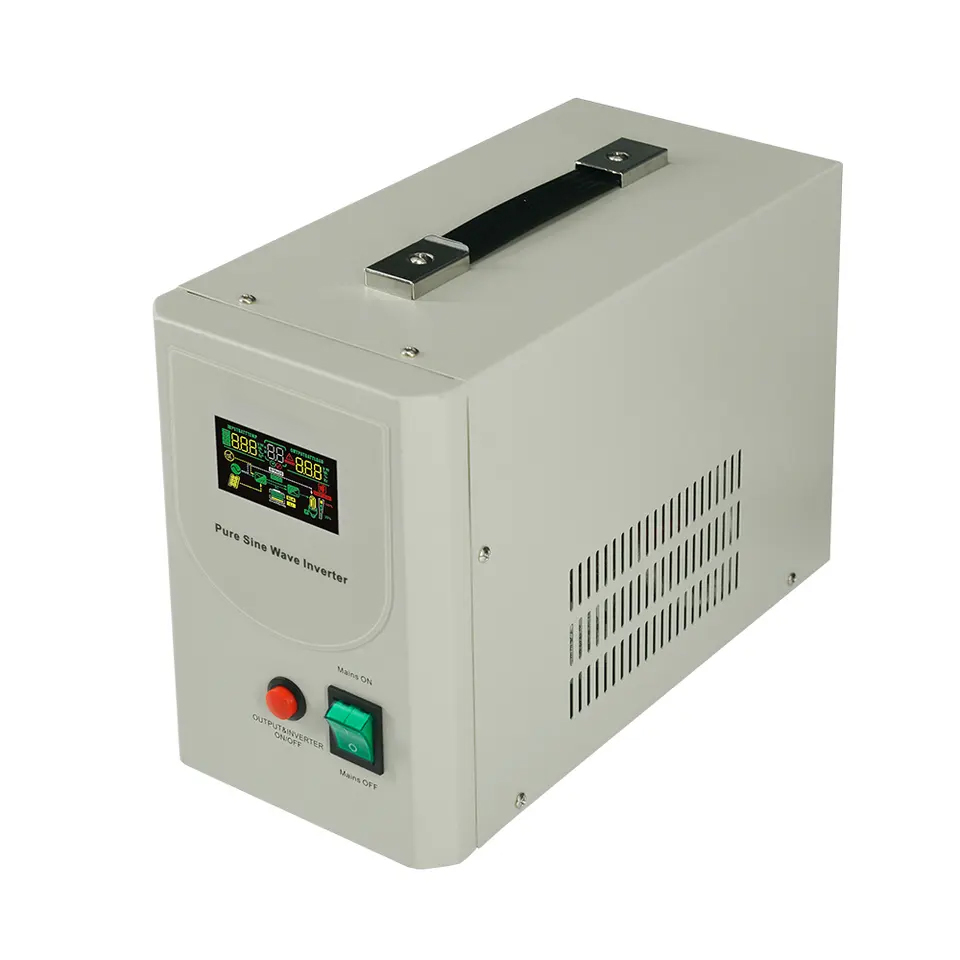

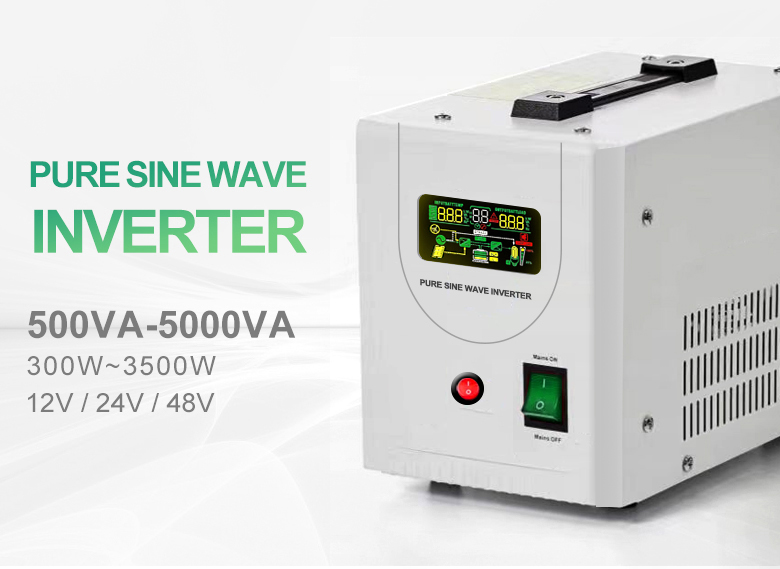

300W-3500W Pure Sine Wave Home Inverter
300W-3500W Pure Sine Wave Home Inverter
Model Number: Home Inverter Type: Pure Sine Wave Inverter Input Voltage: 140-275Vac Output Voltage: 220Vac±3% for Inveter; 195v-240V for AVR Output Frequency: 50/60Hz ± 0.3Hz, subject to the main Charge current: Max.10A/15A/20A optional Warranty: 1 years
|
Model
|
HB-500
|
HB-800
|
HB-1000
|
HB-1500
|
HB-2000
|
HB-2500
|
HB-3000
|
HB-5000
|
|
|
Rated Capacity
|
500VA
|
800VA
|
1000VA
|
1500VA
|
2000VA
|
2500VA
|
3000VA
|
5000VA
|
|
|
Rated Power
|
300W
|
500W
|
700W
|
1050W
|
1400W
|
1800W
|
2100W
|
3500W
|
|
|
Transformer
|
Toroidal transformer
|
||||||||
|
Interface
|
LED graphic
|
||||||||
|
Display status
|
working&loading&battery
|
||||||||
|
Working mode
|
PV(Photovoltaic priority)/AC(AC priority) optional
|
||||||||
|
Input
|
Voltage
|
140-275Vac
|
|||||||
|
Frequency
|
45-65Hz
|
||||||||
|
Output
|
Voltage
|
220Vac±3% for inveter; 195v-240V for avr
|
|||||||
|
Frequency
|
50/60Hz ± 0.3Hz, subject to the main
|
||||||||
|
Wave Form
|
Pure sine wave
|
||||||||
|
Wave Distortion
|
≤3%
|
||||||||
|
Protection
|
overload/high temperature/output high voltage /output low voltage/
battery low voltage shortcircuit/over-charge/over-discharge/reversed polarity(optional) |
||||||||
|
Transfer Time
|
≤4ms
|
||||||||
|
Battery Voltage
|
12VDC
|
24VDC
|
48VDC
|
||||||
|
Charge Voltage
|
13.6V±0.3V
|
27.2V±0.6V
|
54.5V±1V
|
||||||
|
Low Battery Voltage Limit
|
10.9V±0.3V
|
21.8V±0.5V
|
42V±1V
|
||||||
|
Protections Battery Low Voltage Protection Point
|
10.2V±0.3V
|
20.5V+0.5V
|
41V±1V
|
||||||
|
Charge Current
|
Max.10A/15A/20A optional
|
||||||||
|
Environmental
|
Operating Temperature
|
0~40℃
|
|||||||
|
Relative Humidity
|
10%~90%RH,non-condensing
|
||||||||
|
Storage Temperature
|
-15-45℃
|
||||||||
|
Packing
|

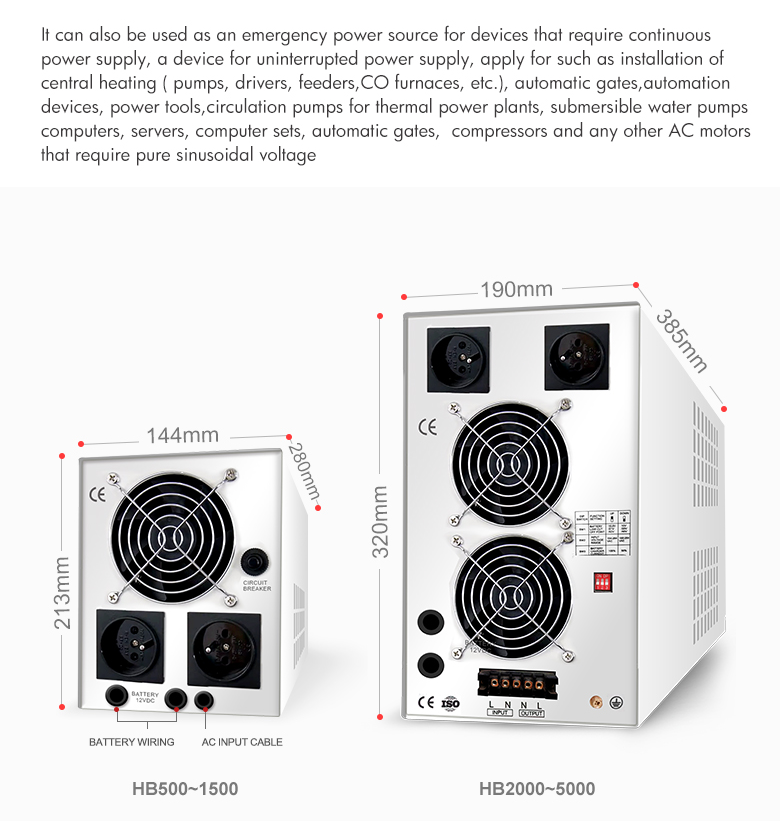

Machine Size(mm)
|
280x144x213
|
385x190x320
|
||||||
|
Qty/Ctn
|
4
|
4
|
2
|
2
|
1
|
1
|
1
|
1
|
|
|
Carton Size(mm)
|
785x305x240
|
415x410x245
|
410x290x320
|
||||||
|
CartonG.W.(kg)
|
22
|
26
|
17.2
|
19.1
|
410x290x321
|
||||
