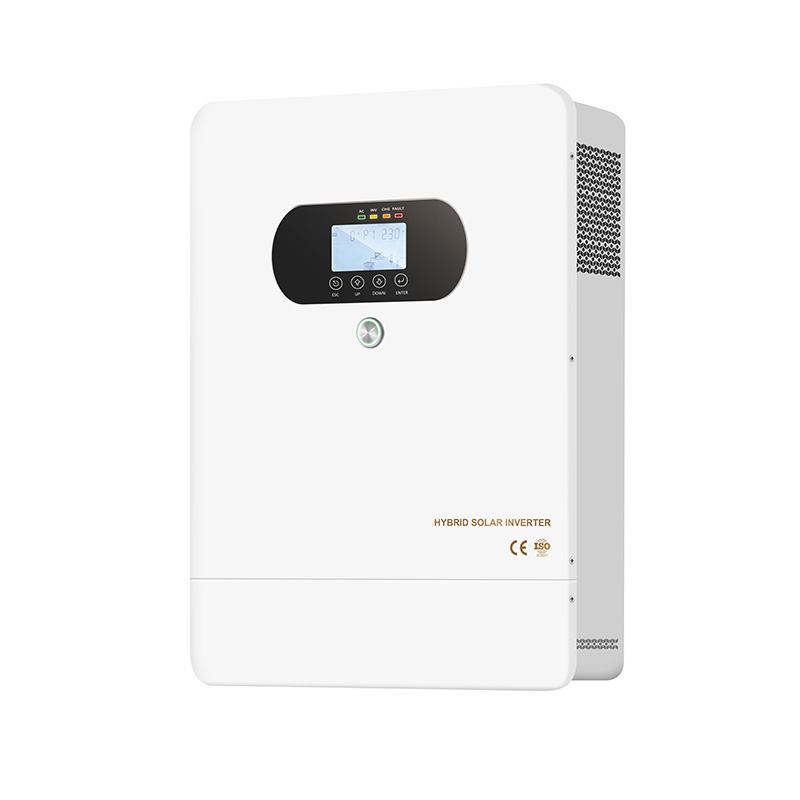

5KW-45KW Connecting Multiple Solar Inverters in Parallel
Brand: ROYCE OEM Service: Yes Model: HP+ Input Voltage: 48VDC Output Voltage: 208/220/230/240VAC±2% Solar Charging: MPPT PV Input Voltage: 120-500VDC
The main benefit of using parallel solar inverters is that they can double your off-grid solar system's power production without using a single, bulky, costly inverter. You can optimize the energy conversion process by connecting many solar inverters in simultaneously, which will effectively split the workload across several units. This improves your solar system's overall performance as well as its dependability.
Moreover, scalability and flexibility are offered. They are appropriate for both residential and business applications since you may begin with a small number of solar inverters and add more as necessary. Your solar energy system will be flexible enough to grow with your energy needs thanks to this versatility.
By paralleling numerous ROYCE PH+ Series solar inverters, you may customize your solar setup to meet your exact needs and ensure both cost-effectiveness and optimum energy generation.
Solar Inverters Features
- Support connecting multiple solar inverter in parallel, to achieve expanding power.
- Support paralleling multiple solar inverters to achieve 3 phase output.
- When using a single unit solar inverter (without parallel), it can operate without batteries.
- Users can set the working mode, charging current, charging voltage, AC output voltage and frequency of the inverter through the function buttons
- Can communicate with lithium batteries through RS485. Solar energy, mains power, and generators can all charge batteries.
Technical Parameter
| Model: HP-PLUS+ | 50248 | |||||
| Power | ||||||
| Rated Power | 5000W | |||||
| Battery | ||||||
| Standard Battery Voltage | 48VDC | |||||
| Battery Type | Lead-acid battery / Lithium battery / Custom battery | |||||
| Maximum Charging Current (PV+AC) | 80A | |||||
| Maximum PV Charging Current | 80A | |||||
| Maximum AC Charging Current | 60A | |||||
| MPPT Solar Charge Controller | ||||||
| Max PV Input Voltage（Voc） (At The Lowest Temperature) |
500VDC | |||||
| Maximum PV Input Power/Tracking Channels | 5500W/1 route | |||||
| MPPT Tracking Voltage Range | 120V~450VDC | |||||
| AC Input | ||||||
| Rated Input Voltage | 208VAC/220VAC /230VAC/ 240VAC | |||||
| AC Input Voltage Range | 170VAC~280VAC （UPS mode）/ 90VAC~280VAC（Appliance mode） | |||||
| AC Input Frequency | 45Hz~55Hz（50Hz)，55Hz~65Hz（60Hz) | |||||
| AC Output | ||||||
| Output Wave | Pure sine wave | |||||
| Conversion Efficiency(INV model) | 94%（ peak value） | |||||
| Output Voltage/Frequency | 208VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%，50Hz±1% or 60Hz±1%(INV mode); follow input (mains mode) | |||||
| Other | ||||||
| Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||
| Protection Degree | IP20 | |||||
| Display | LCD+LED | |||||
| Cooling Method | Cooling fan in intelligent control | |||||
| Communication | USB/RS232 communication , mobile APP (WIFI monitoring or GPRS monitoring) Optional | |||||
| Working Mode (can be set) | Mains priority/Battery priority/PV priority | |||||
| Charging Method (can be set) | AC + PV together (intelligent distribution) / Only PV / PV priority / Mains priority | |||||
| Operating Temperature | -15℃~40℃ | |||||
| Relative Humidity | 0%~95% (No condensation) | |||||
| Dimensions and Weight | ||||||
| Product Size (L*W*Hmm) | 460x320x110 | |||||
| PackageSize(L*W*Hmm) | 520x385x215 | |||||
| N.W.(kg) | 9.75 | |||||
| G.W.(kg) | 10.75 | |||||

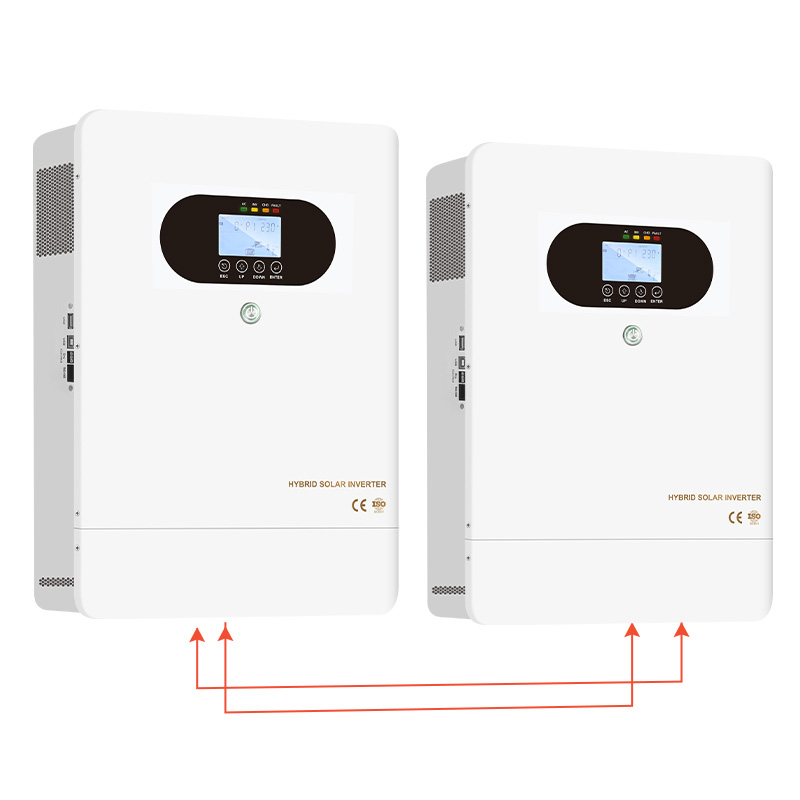

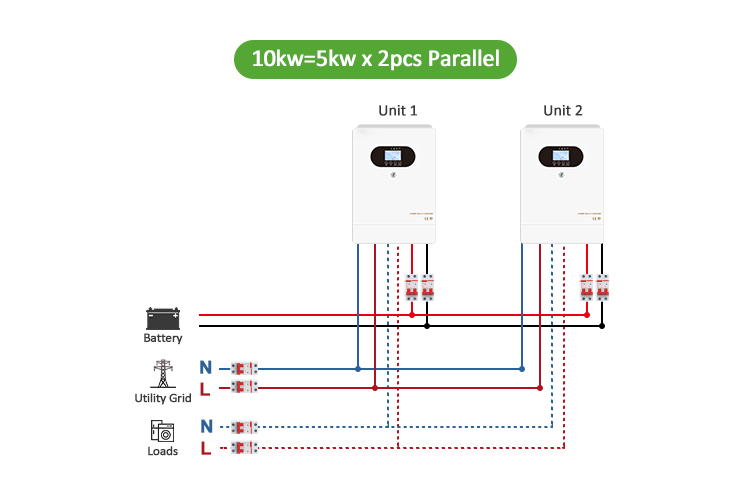

▲ 10KW Means Connecting 2 Inverters in Parallel

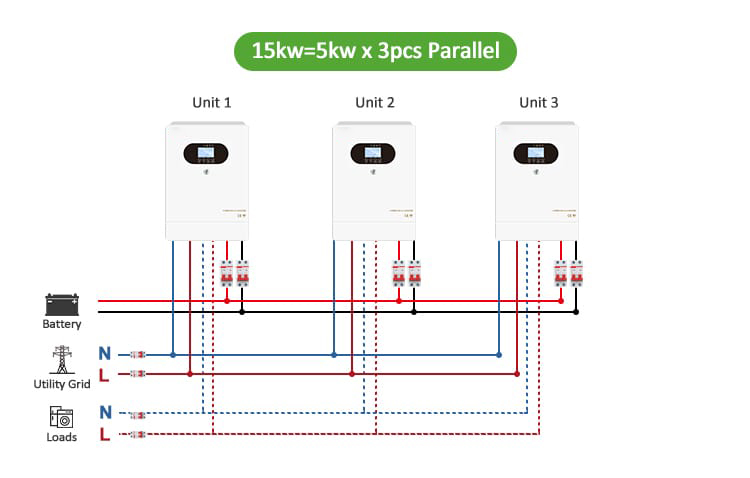

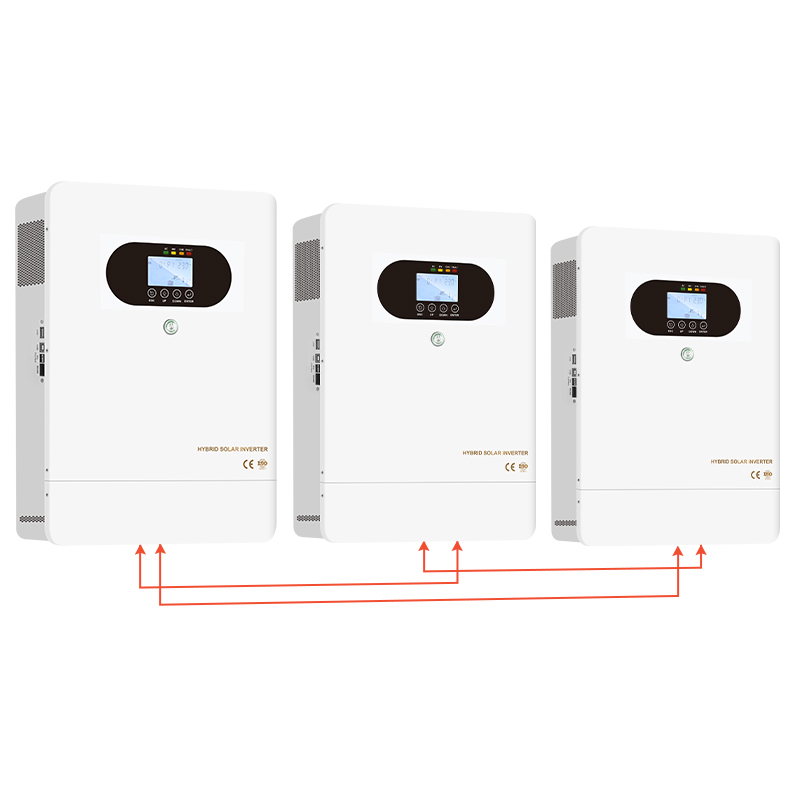

▲ 15KW Means Connecting 3 pcs Solar Inverters in Parallel

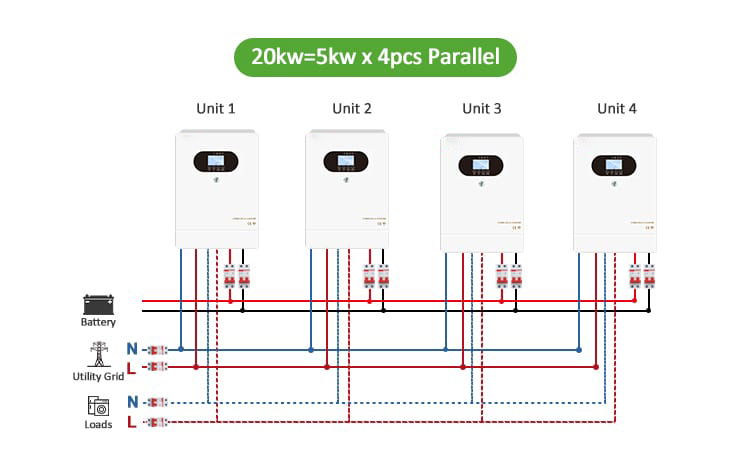

▲ 20KW Means Connecting 4 pcs Inverters in Parallel

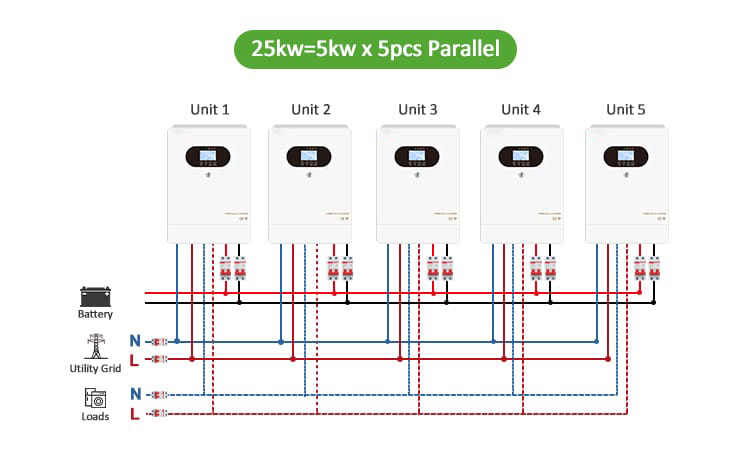

▲ 25KW Means Connecting 5 pcs Solar Inverters in Parallel

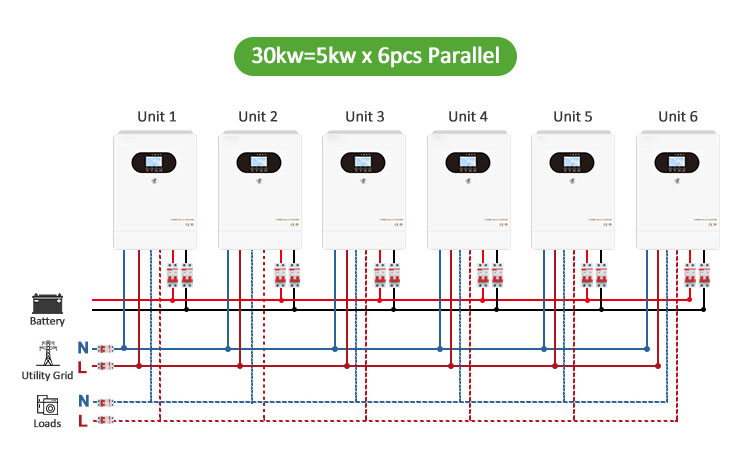

▲ 30KW Means Connecting 6 pcs Solar Inverters in Parallel

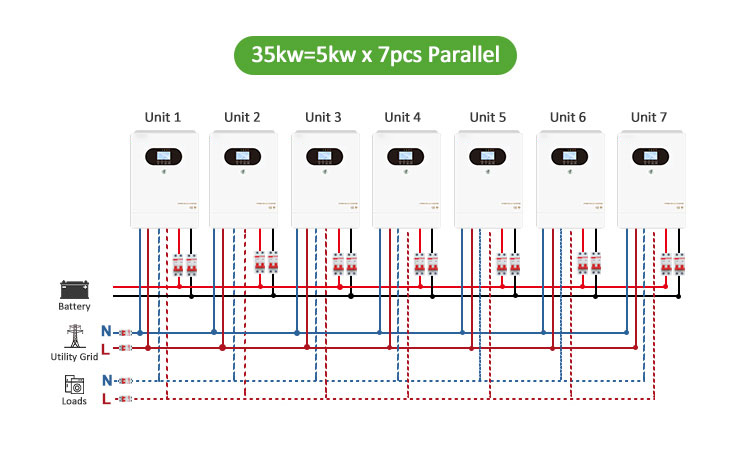

▲ 35KW Means Connecting 7 pcs Inverters in Parallel

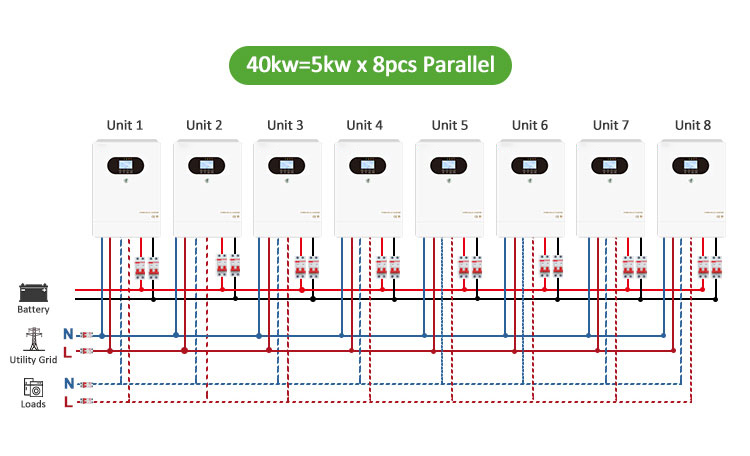

▲ 40KW Means Connecting 8 pcs Inverters in Parallel

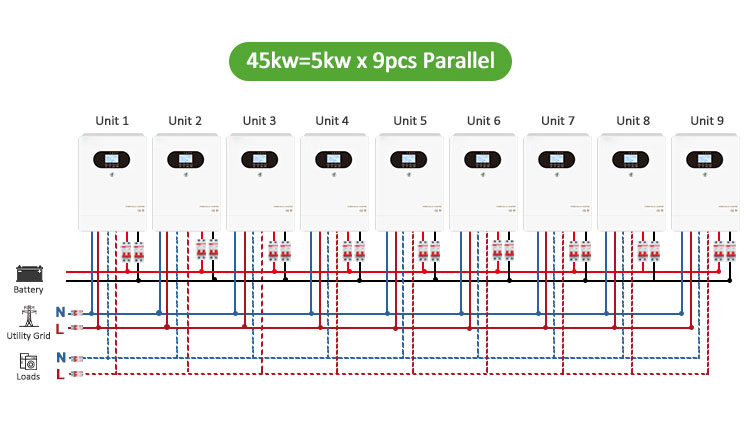

▲ 45KW Means Connecting 9 pcs Solar Inverters in Parallel
Details

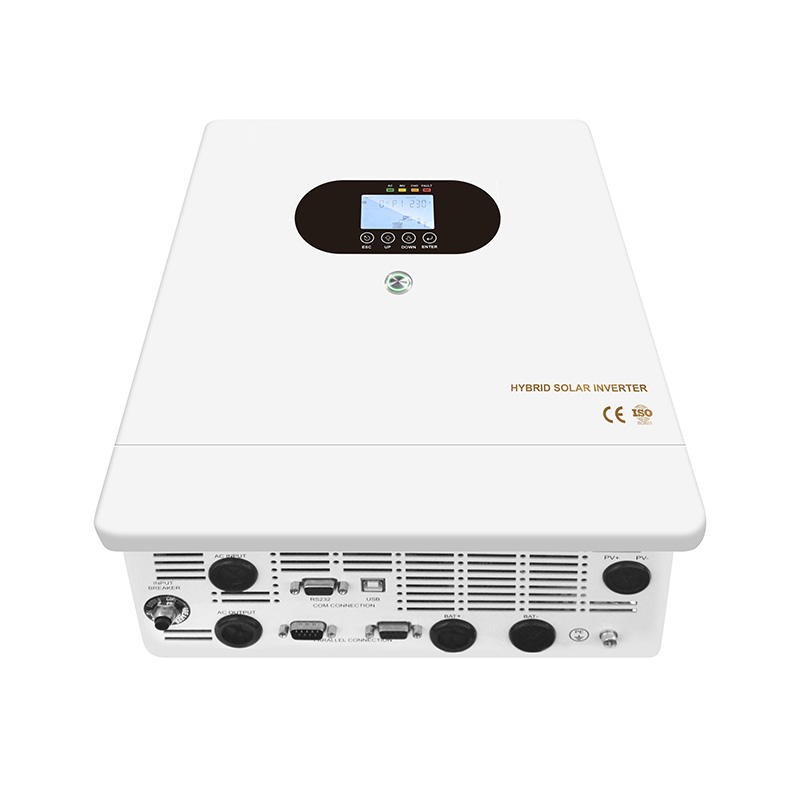

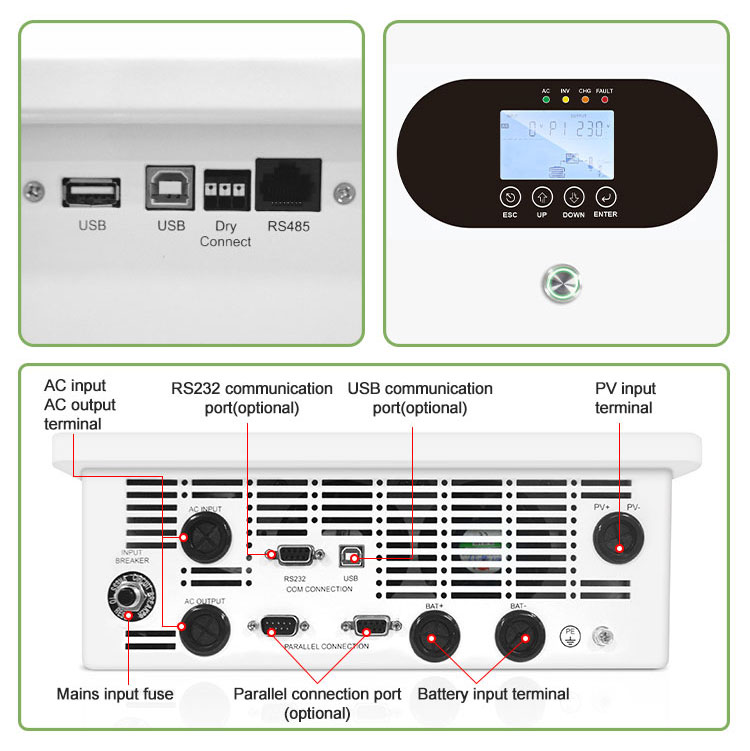

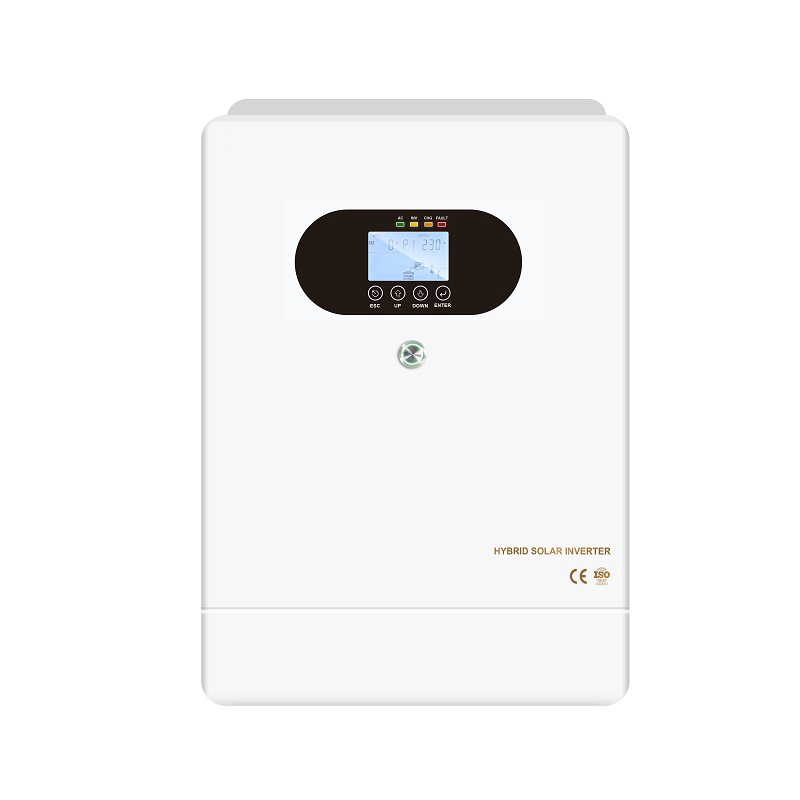

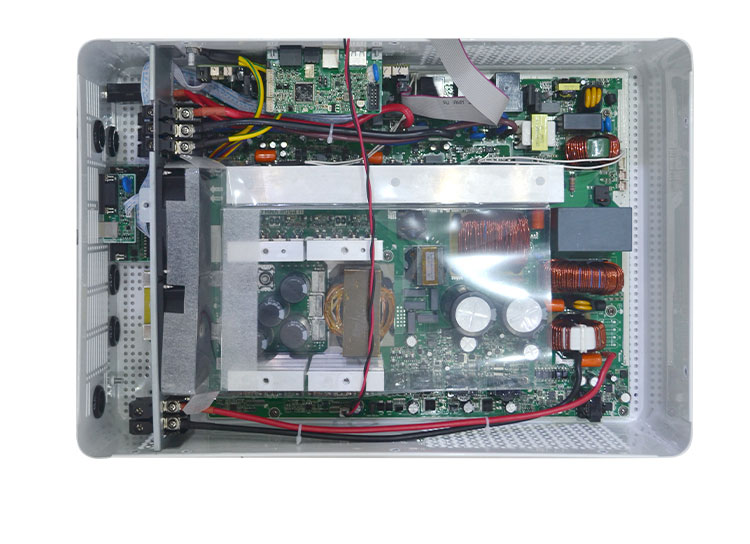

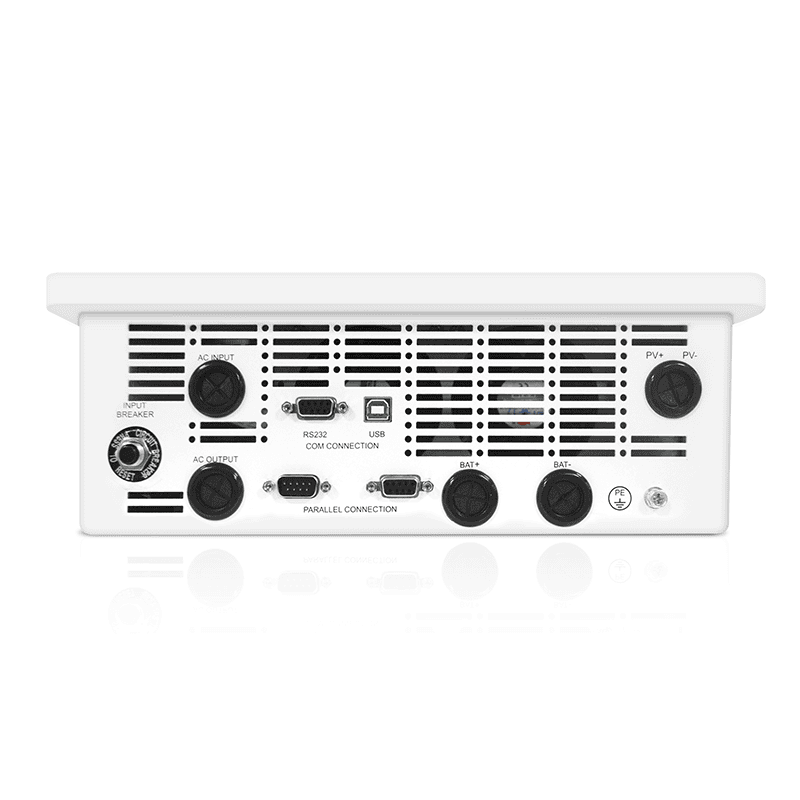

This beautiful and stylish human-computer interface has an LCD screen, buttons for operations, and a single button for turning on and off the solar inverters. The communication mechanism may remotely monitor the solar inverters' operating state and supports USB, DRY CONNECT, RS485, and WIFI/GPRS. The wiring at the bottom is very evident. Please request the user manual from the ROYCE sales team for additional instructions. By default, the inverter comes with a high efficiency MPPT solar controller installed. with exact manufacture, neat interior wiring, and no cost cutting. It's of really high quality.
