Uninterrupted power supply calculator for Calculating Battery Backup Time

Uninterrupted power supply calculator

In the uninterruptible power supply (UPS) industry, ensuring a reliable power backup during electrical outages is crucial. To accurately calculate UPS battery backup time, we can follow the two steps outlined below with Uninterrupted power supply calculator:

Step 1: Understanding Key Parameters

Before calculating battery backup time, it's essential to understand several key parameters. These include:

1. Load Power: This is the total power supported by the UPS system during operation and is usually measured in kilowatts (kW). You can obtain this information from the specifications of the devices or use a power meter.
2. UPS Rated Capacity: It represents the electrical capacity the UPS system can provide, typically measured in kilovolt-amperes hours (kVAh). This is the designed power capacity of the UPS, often found in the equipment specifications.
3. Battery Voltage: This is the voltage of the backup battery, measured in volts (V). Battery voltage is a crucial factor in calculating battery backup time.

Step 2: Using the Battery Backup Time Formula

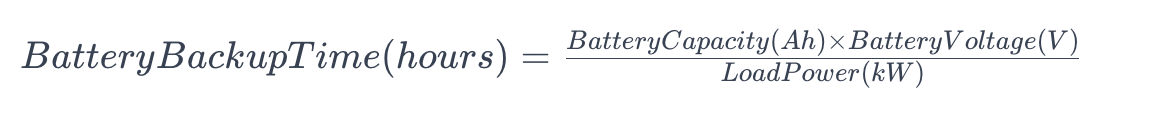

Battery backup time can be calculated using the following formula:

​

Where:

• Battery Capacity (Ah): Represents the capacity of the backup battery, measured in ampere-hours (Ah). This information can be found in the backup battery specifications.
• Battery Voltage (V): The voltage of the backup battery, measured in volts (V). This is typically the nominal voltage of the backup battery.
• Load Power (kW): The total power of the load devices, measured in kilowatts (kW).

By substituting these values into the formula, an estimated battery backup time can be obtained. It's important to note that this is a theoretical value, and actual battery backup time may be influenced by factors such as battery aging, temperature variations, and other environmental conditions.

Considerations:

1. Accounting for Efficiency Loss: In practical applications, UPS systems may experience some efficiency losses. Therefore, adjusting the calculation based on the system's efficiency can provide a more accurate estimate.
2. Regular Inspection and Maintenance: Battery performance and condition may change over time. Regular inspections and maintenance are crucial to ensuring the reliability of the UPS system.

By following these two steps, not only can one understand how to calculate battery backup time, but it also enables better planning for the usage of UPS systems, ensuring continuous power support during electrical outages.
